Description

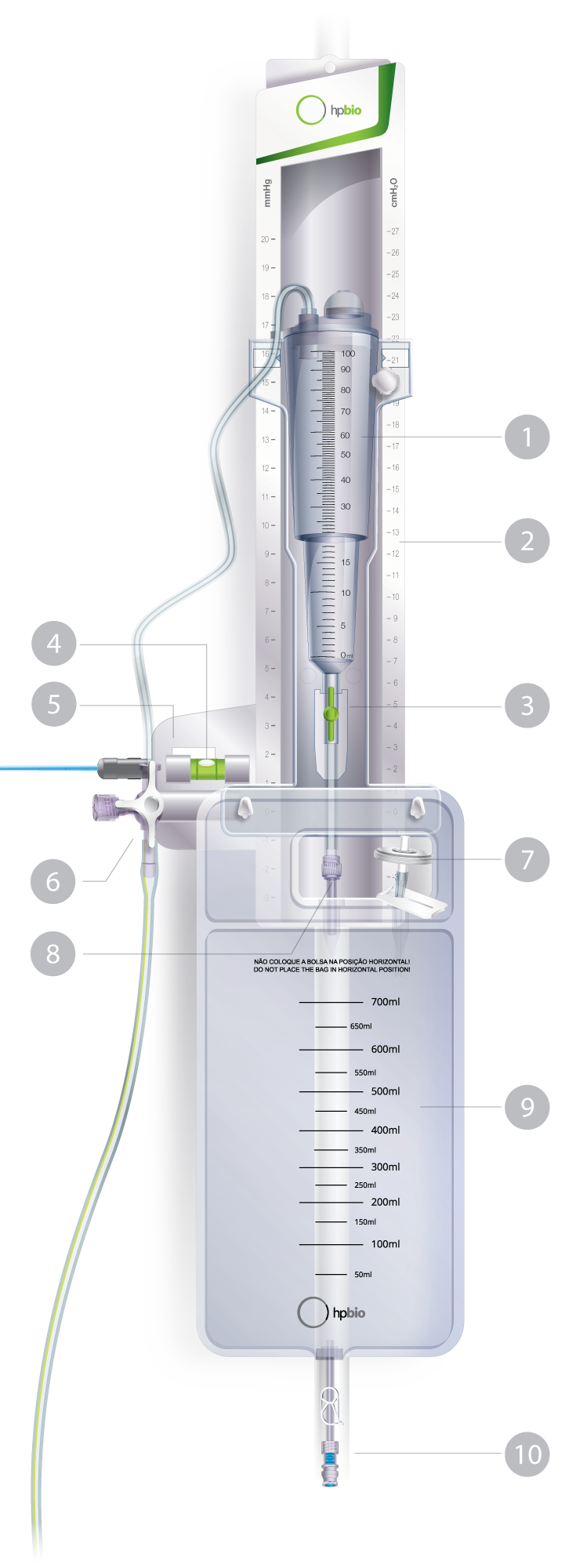

The HP-BIO Free Flow External Ventricular Drainage (EVD) System (REF# DVEAF35) is indicated to reduce and temporarily control intracranial pressure (ICP) by draining cerebrospinal fluid (CSF) to an external collecting bag. This comprehensive system is engineered for maximum safety and clinical efficiency. It features an innovative mobile burette with a quick-clearing dome that immediately unblocks wetted filters, resolving flow interruptions instantly. A built-in level marker, combined with a Class II laser point pen holder, allows clinicians to align the graduated pressure scale precisely with the patient’s external auditory canal (the ‘zero point’). The system includes an anti-reflux valve with extra-low opening pressure to prevent backflow without increasing drainage resistance, needleless sampling ports (Y-valves) to prevent leaks and infection, and a 700 ml graduated drainage bag. The system is supplied with a 35 cm adult ventricular catheter (3.0 mm external diameter, 1.6 mm internal diameter) made of medical silicone with radiopaque markings.
Key Features & Clinical Benefits

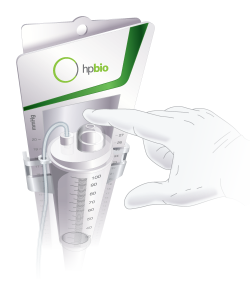

- Burette filter quick-clearing dome to instantly resolve filter wetting blockages.
- Precision level marker with Class II laser point holder for perfect alignment to the zero point.
- Needleless Y-valves and sampling sites to minimize infection and leakage risks.
- 700 ml graduated drainage bag with security clamp and luer lock connector.
- Anti-reflux valve with extra-low opening pressure to prevent CSF return.
- Includes 35 cm adult ventricular catheter with radiopaque markings and oblong orifices.
Technical Specifications
| Reference Code | DVEAF35 |
| Catheter Application | Ventricular Adult |
| Catheter Dimensions | 3.0 mm OD x 1.6 mm ID (9.0 Fr) |
| Catheter Length | 350 mm (35 cm) |
| Drainage Bag Capacity | 700 ml (graduated every 50 ml) |
| Burette Capacity | 100 ml (conical two-stage system) |
| Pressure Scale Units | mmHg and cmH2O |
| IV Pole Attachment | Type C rear attachment with fixing screw |
